Flexabed Split-King Hi-Low SL Bed

The Premium Alternative to a Hospital Bed — Built for Home & Assisted Living

The Flexabed Split-King Hi-Low SL delivers every positioning and height adjustment feature a caregiver or patient needs, built into a bed that actually looks like it belongs in a bedroom. Unlike clinical hospital beds with bare metal frames, the Flexabed is constructed from furniture-grade materials with a wood-finish headboard and footboard that blends naturally into a home environment.

The Split-King design pairs two independent twin beds side by side on a shared 76" wide frame — the same width as a standard king bed. Each side has its own hand control, so both users adjust head, foot, and bed height independently without disturbing the other. This makes the Split-King the right choice when one partner has medical or positioning needs and the other simply wants a comfortable adjustable bed.

Full Electric Hi-Low Operation

The Hi-Low SL adds vertical bed height adjustment to standard head and foot positioning — a critical feature for safe patient transfers and caregiver access:

• Bed Height (Hi-Low): Raises and lowers the entire sleeping surface vertically to reduce caregiver back strain and allow safe transfers
• Head Position: Adjusts up to approximately 65 degrees for reading, watching TV, eating, or respiratory positioning
• Foot Position: Raises to approximately 45 degrees independently for leg elevation and circulation
• All positions operate independently or simultaneously — unlimited positioning combinations

All functions are powered by quiet LINAK actuator motors — the same motors used in premium medical and furniture applications worldwide.

Hi-Low Height Range

• Standard height range: 13.25" to 20.75" (deck height)
• Casters removed: 11" to 18.5"
• Top of mattress to floor (standard 10" mattress): 23.25" to 30.75"
• Under-bed clearance: 5.5" lowered / 11.5" raised — compatible with Hoyer and other floor-based patient lifts

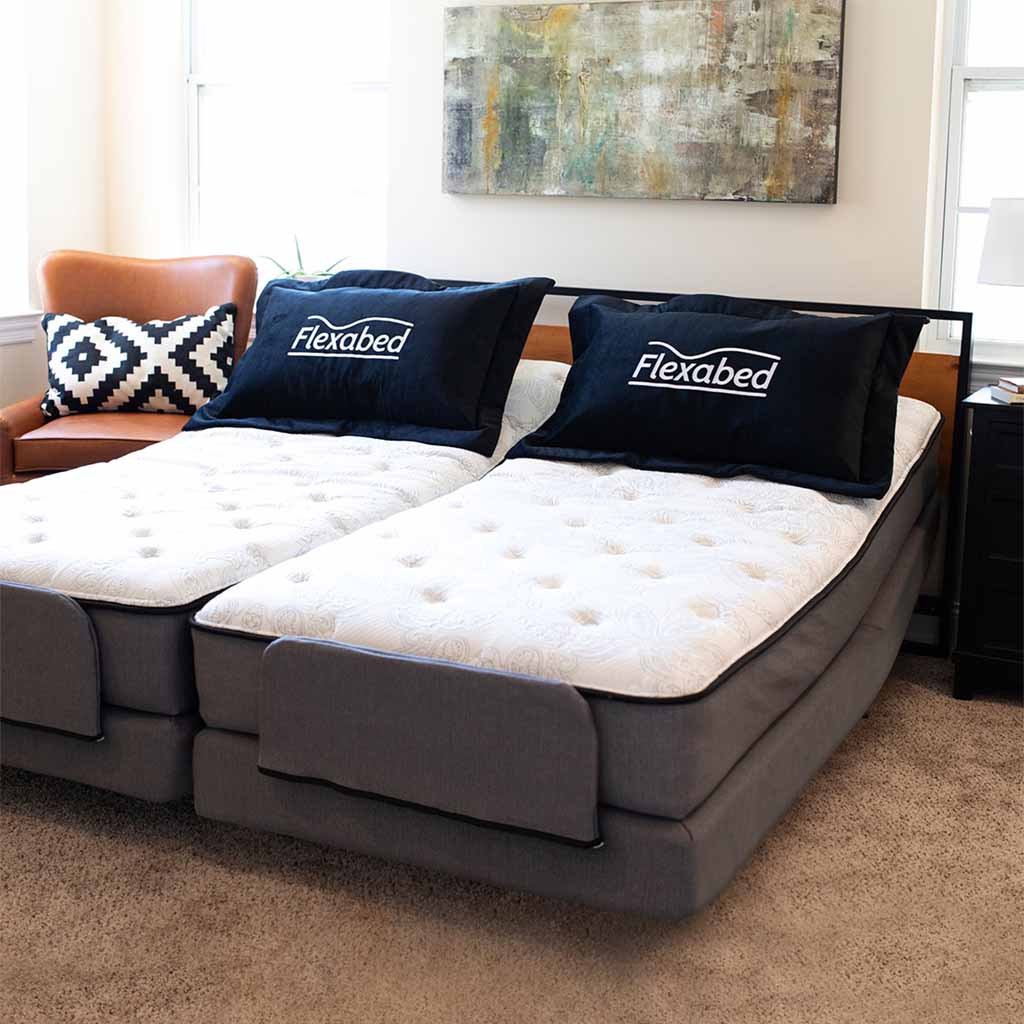

Split-King Design: Independent Control for Each User

The Split-King is two twin beds joined by swing-away brackets, providing several practical benefits:

• Independent positioning: Each user controls their own side — no compromise on head or foot angle
• Easy linen changes: Swing-away brackets allow the beds to be separated, making sheet changes significantly easier
• Standard bedding: Each side uses standard twin bedding — no specialty sheets required
• 76" total width: Same footprint as a standard king bed

Mattress Options

Choose your mattress when configuring your bed. Not sure which is right? View our Flexabed mattress comparison guide or call us and we'll walk you through it.

• Premier Innerspring: Available in soft, medium, or firm — traditional spring feel
• Memory-Foam Combo: Foam comfort layer over supportive base — most popular all-around choice
• Memory-Foam Core: Full memory foam for deep pressure relief
• Latex Core: Natural latex for responsive, breathable support
• GEL/Memory-Foam Combo: Gel-infused memory foam for temperature regulation and pressure relief

Length Options

• 74" — Standard length for most users
• 80" — Extended length for taller users
• 84" — Maximum length for users over 6'2"

Hand Control Options

• Wired hand control: Lightweight with large switches — stays connected to the bed at all times
• Wireless hand control: Same large-button design without the cord — ideal for users who have difficulty managing a tethered control

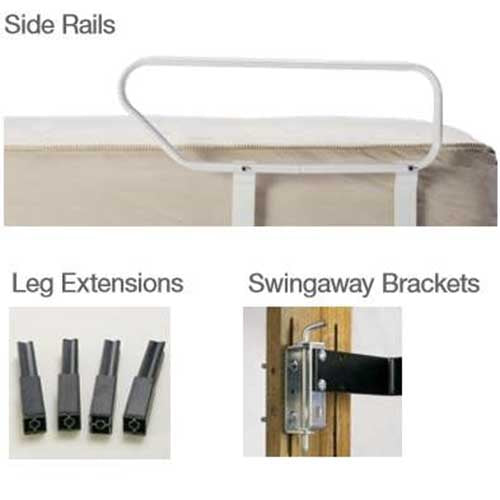

Optional Add-Ons

• Bed Rails: Available for one or both sides for patient safety and repositioning assistance
• Dual Massage: Vibration massage built into the bed for relaxation and circulation

Who Benefits Most from the Split-King Hi-Low SL

Ideal For:

• Couples where one partner has home care or medical positioning needs
• Home care patients who need Hi-Low height adjustment for safe transfers
• Assisted living situations requiring caregiver access without a clinical-looking bed
• Patients with chronic pain, COPD, emphysema, asthma, sciatica, arthritis, or obesity who benefit from repositioning throughout the night
• Patients using a Hoyer or floor-based patient lift — Hi-Low clearance accommodates most lift bases

May Not Be the Right Fit If:

• Single occupant exceeds 400 lbs (weight limit per side)
• Combined dual occupant weight exceeds 700 lbs
• Room cannot accommodate a 76" wide king-size footprint
• Patient requires a full clinical hospital bed with IV poles, side rail systems, or Trendelenburg positioning

Compare Flexabed Sizes

• Twin — 38" wide: Best hospital bed replacement for a single occupant, fits any bedroom
• Full — 53" wide: More sleeping room for a single occupant
• Split-King — 76" wide (this page): Two independent twins for couples

Need Help Configuring Your Flexabed?

With multiple length, mattress, rail, and hand control options, our team has been helping families choose the right adjustable bed since 1999. Call us at 800-998-4703, Monday–Friday 7am–5pm EST, or email service@allpointsmedical.com — no pressure, just straight answers.

• Split-King design — two independent twin beds on a shared 76" wide king frame
• Independent head, foot, and Hi-Low height control on each side
• Full electric operation — head raises to ~65°, foot raises to ~45°
• Hi-Low deck height range: 13.25" to 20.75" (standard); 11" to 18.5" without casters
• Under-bed clearance: 5.5" lowered / 11.5" raised — compatible with Hoyer and floor-based patient lifts
• Quiet LINAK actuator motors — smooth, whisper-quiet operation
• Swing-away brackets allow beds to be separated for easy linen changes
• Furniture-grade wood-finish headboard and footboard — no clinical hospital bed appearance
• Available sleeping surface lengths: 74", 80", or 84"
• Five mattress options: Premier Innerspring, Memory-Foam Combo, Memory-Foam Core, Latex Core, GEL/Memory-Foam Combo
• Wired or wireless hand control — large buttons, low-voltage operation
• Optional half-length bed rails available for one or both sides
• Optional dual massage (vibration) function
• Uses standard twin bedding on each side — no specialty sheets required
• Locking casters standard
• UL and CSA approved — Made in the USA

Model	Flexabed Hi-Low SL — Split-King (185-King)
Overall Width	76" (Split-King)
Sleeping Surface Lengths	74", 80", or 84"
Deck Height Range (with casters)	13.25" to 20.75"
Deck Height Range (casters removed)	11" to 18.5"
Top of Mattress to Floor (10" mattress)	23.25" to 30.75"
Head Angle (fully raised)	~65 degrees
Foot Angle (fully raised)	~45 degrees
Under-Bed Clearance	5.5" lowered / 11.5" raised
Weight Capacity	400 lbs per side / 700 lbs combined
Motors	Quiet LINAK actuators
Frame	Durable steel construction
Hand Control	Low-voltage wired or wireless (per side)
Casters	Locking
Certifications	UL and CSA approved
Bedding	Standard twin bedding on each side
Made In	USA

<ul>
<li><strong>First 12 months:</strong> In-home parts and labor at no charge</li>
<li><strong>Years 2 through 5:</strong> Any part may be sent to the Flexabed factory freight prepaid for repair</li>
</ul>
