Century 60" Full-Electric Bariatric Bed

Queen-Size Hospital Bed - 60" Wide Bariatric Bed

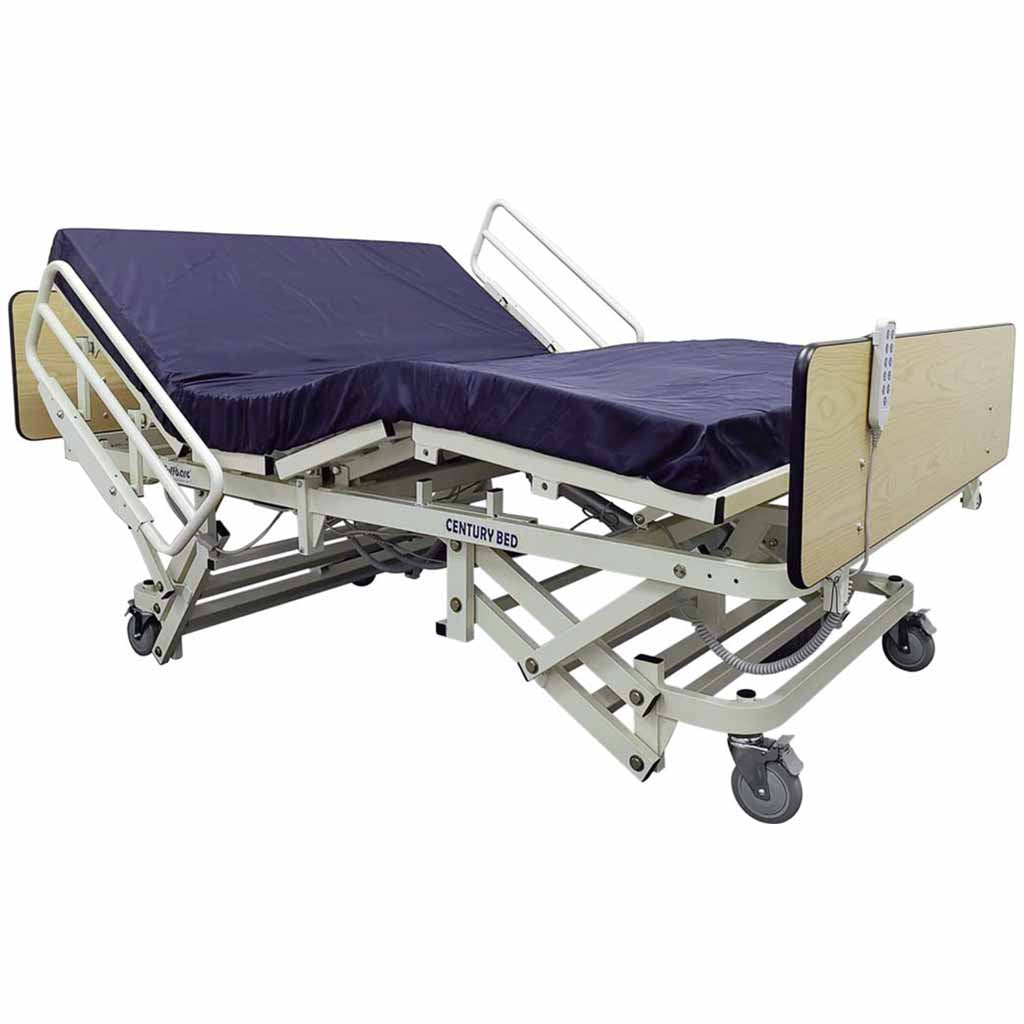

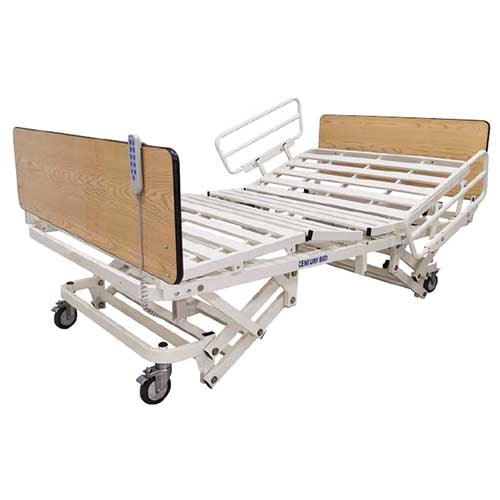

The Queen Size Hospital Bed measures 60" Wide and has a two piece split frame design that is easy to setup and operate. This Queen size Hi-Low Bariatric hospital bed offers wider sleep surface and utilizes square tubing deck for superior support.

1000 lbs weight capacity, 60"W x 80"L with optional length extension for 84" length.

Bed height: 14.5" - 28" (Bed deck height)

Includes Trendelenburg and Reverse Trendelenburg positioning.

Download the T5260 Owner's Manual

Full Description

Hi / Low Queen Size Hospital Bed - 1000 lbs Capacity

Sleep surface: 60"W x 80"L (Queen Size)

The Tuffcare model T5260 is a Queen-Size Hospital Bed with full High/low features. Measures 60"W x 80"L (sleep surface) and has 1000 lbs weight capacity. The Bariatric bed offers a heavy-duty frame that ensures strength and patient safety.

All positions are controlled with the hand control. Fully electric homecare bed includes locking casters that make moving bed easy.

Includes Trendelenburg and Reverse Trendelenburg positioning.

Bed can be operated with hand-crank in case of power outage.

Key Specifications:

• Bed height (min.): 14.5" (add mattress height to this number)
• Bed height (max.): 28" (add mattress height to this number)
• Maximum Head Angle: 60 degrees
• Maximum Foot Angle: 58 degrees
• Overall length: 88" (Outside Head/Foot Boards)
• Overall width: 60"
• Weight limit: 1000 lbs
• Product weight: 220 lbs

Superior Construction & Design

The bed frame is made of reinforced steel tubing, which provides exceptional strength and stability. The frame is designed with a 4-section mattress support system that can be easily adjusted to provide optimal patient positioning and comfort.

One of the key features of the Tuffcare T5260 Bariatric Bed is its electric-powered height adjustment, which allows caregivers to raise and lower the bed to the desired height for easy patient access and care. The bed also includes locking casters for easy mobility and stability.

Overall, the Tuffcare T5260 Bariatric Bed is a high-quality and reliable option for hospitals and care facilities looking to provide top-notch care for their Bariatric patients. Its sturdy design, advanced features, and ease of use make it an excellent choice for those seeking a durable and versatile Bariatric bed.

Product Features

• Welded rectangle steel tubing frame construction provides maximum stability
• New aluminum alloy bed surface has the same strength but weight 30% less

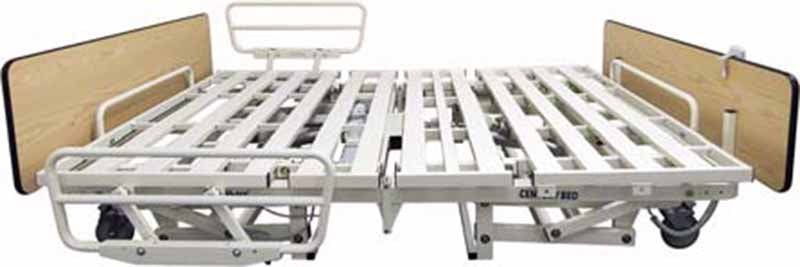

• Two piece split frame design is easy to use, set up, and operate
• Heavy Duty 5" swivel, locking casters provide increased security
• Trendelenburg and reverse Trendelenburg position can be easily achieved
• UL approved electronic system (made in U.S.A) provides quiet and smooth operation
• Square tubing deck for superior support

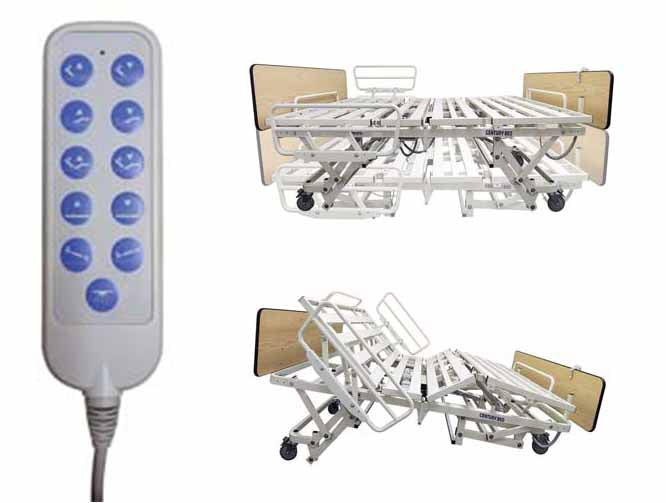

• Full electric operation with hand pendant control
• Manual hand-crank operation available in case of power failure
• Bed end panels are built to be resistant to impacts and scratching
• Synchronized control system keeps the bed leveled to maximize resident comfort
• Optional length extension available to extend sleep surface to 84"

Specifications

Model Number:	T5260
Sleep Surface:	60"W x 80"L (Queen Size)
Optional Length:	60"W x 84"L (with extension)
Overall Length:	88" (Outside Head/Foot Boards)
Overall Width:	60"
Bed Deck Height (Min):	14.5" (add mattress height)
Bed Deck Height (Max):	28" (add mattress height)
Maximum Head Angle:	60 degrees
Maximum Foot Angle:	58 degrees
Weight Capacity:	1000 lbs (454 kg)
Product Weight:	220 lbs
Frame Construction:	Welded rectangle steel tubing
Bed Surface Material:	Aluminum alloy (30% lighter than steel)
Casters:	5" heavy duty swivel, locking casters
Power System:	UL approved electronic system (Made in USA)
Operation:	Full electric with manual hand-crank backup
Sections:	4-section mattress support system
Frame Design:	Two piece split frame

Positioning Features

Hi-Low Adjustment:	Yes (14.5" - 28")
Head Section Adjustment:	Yes (0° - 60°)
Foot Section Adjustment:	Yes (0° - 58°)
Trendelenburg:	Yes
Reverse Trendelenburg:	Yes
Synchronized Control:	Yes (keeps bed leveled)

Benefits

• Queen-Size Comfort: 60" wide sleep surface provides extra room and comfort for larger patients
• High Weight Capacity: 1000 lb capacity accommodates bariatric patients safely
• Easy Setup: Two-piece split frame design simplifies installation and relocation
• Caregiver-Friendly: Electric height adjustment reduces caregiver strain and improves patient access
• Versatile Positioning: Trendelenburg and reverse Trendelenburg positions enhance therapeutic options
• Power Failure Ready: Manual hand-crank operation ensures functionality during outages
• Mobility: Heavy-duty locking casters allow easy repositioning and secure placement
• Durability: Reinforced steel frame construction with lifetime weld warranty
• Lightweight Design: Aluminum alloy deck is 30% lighter while maintaining strength
• Quiet Operation: UL approved electronic system provides smooth, quiet adjustments

Ideal For

• Bariatric patients up to 1000 lbs
• Home healthcare settings
• Long-term care facilities
• Hospitals and medical centers
• Rehabilitation centers
• Patients requiring frequent position changes
• Patients who need Trendelenburg positioning
• Post-surgical care
• Extended recovery periods

Warranty

Frame & Welds:	Lifetime warranty on all welds
Bed Structure:	3 years (free from defective workmanship and materials)
Electronics:	1 year

What's Included

• T5260 Queen-Size bed frame (two-piece design)
• Head and foot boards
• 4-section aluminum alloy deck support
• Electric hand pendant control
• UL approved power system (Made in USA)
• 5" heavy-duty locking swivel casters (set of 4)
• Manual hand-crank for emergency operation
• Owner's manual and setup instructions

Optional Accessories

• Length extension kit (extends sleep surface to 84")
• Half-length bed rails
• Full-length bed rails
• Bariatric mattress (sold separately)
• Trapeze bar
• IV pole
