SelectAir MAX Low Air Loss Mattress System

Advanced "True" Low Air Loss System with Therapeutic Alternating Pressure Relief

True Low-Air-Loss and Pulsation modes with an air flow rate up to 1275 liters per minute. The SelectAir MAX Mattress System includes a quiet operating compressor and a user friendly control unit so you can easily set it up for any patient. This mattress system provides progressive alternating pressure therapy with True Low Air Loss to aid patients who have existing stage 1,2,3 or 4 skin ulcers.

SelectAir MAX measures 84"L x 36"W x 8"H with 400 lbs weight capacity. SelectAir MAX is a Group II therapeutic mattress.

Size: 36"W x 84"L x 8"H, 400 lbs weight capacity

Full Description

State-of-the-Art Pressure Relief System

The SelectAir MAX Low Air Loss Mattress System is a state-of-the-art pressure relief system designed to prevent and treat pressure ulcers for patients who are at risk for developing them.

The SelectAir MAX is an ideal solution for patients who require long-term bed rest, have limited mobility, or are recovering from surgery or illness. It is easy to set up and maintain, and provides a comfortable and supportive sleeping surface for patients.

True-Low-Air-Loss provides micro-climate and temperature management. The SelectAir MAX Mattress can accommodate patient weights up to 400 lbs.

Easy to use: The user-friendly high-flow control unit offers 10 patient comfort levels with adjustable turning cycles.

Pump Max flow: 1275 LPM

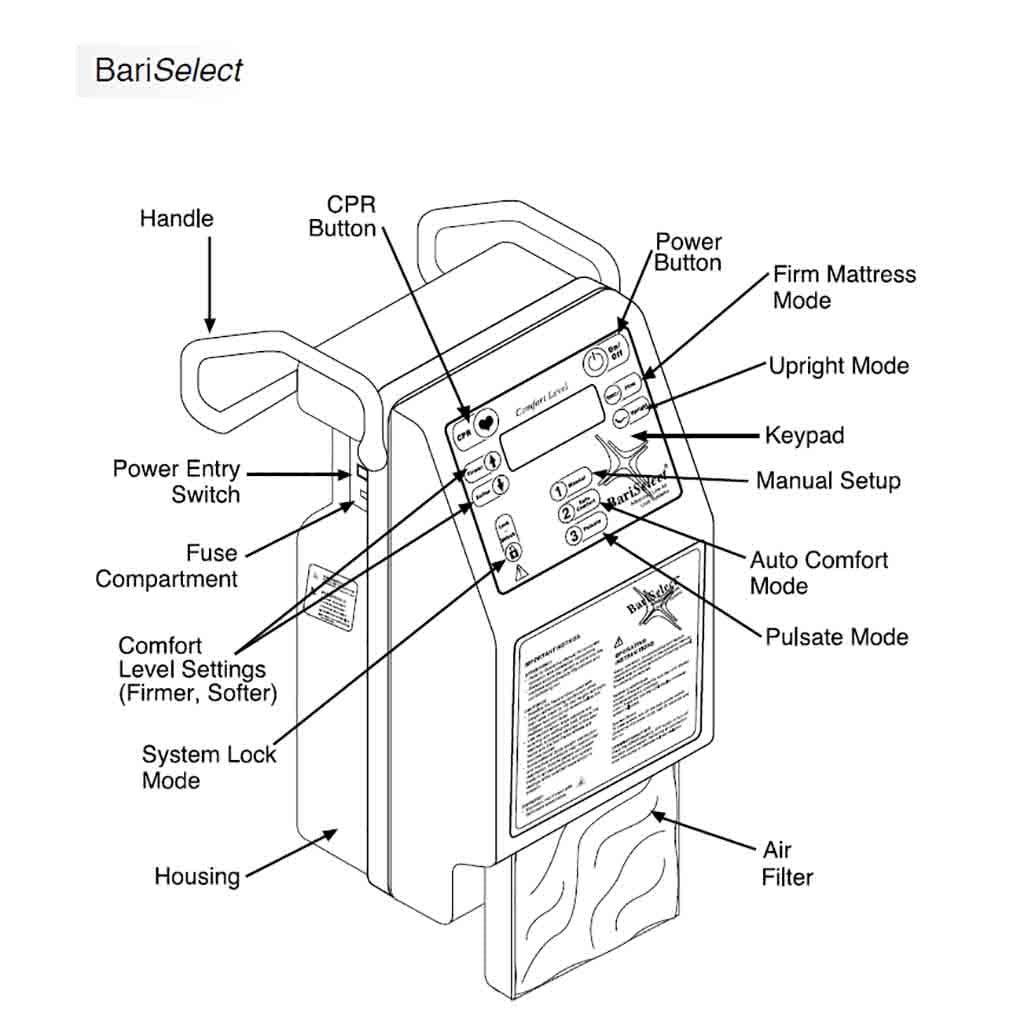

Advanced Features

• System Lock: Helps to prevent accidental adjustments and automatically resets the system in case of a power failure
• Auto Comfort: Takes the guesswork out of programming. During set-up, mattress automatically sets optimal pressure according to patient's weight distribution
• Pulsation (3 Cycle Settings): Provides three cycle settings that continually readjust the system to ensure patient comfort through therapeutic alternating pressure relief

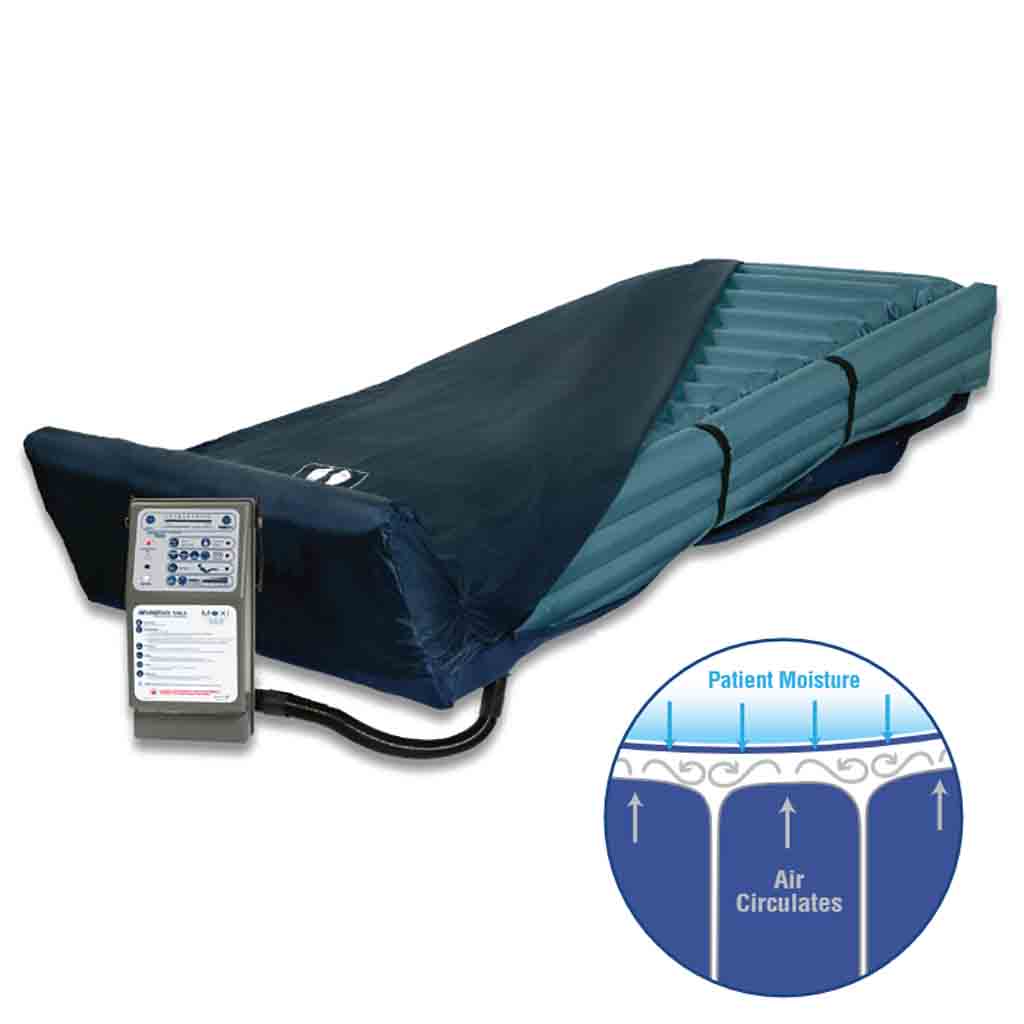

• True Low Air Loss: Zoned airflow continuously releases air through the top layer to manage patient moisture and temperature
• 10 Comfort Levels: Digital adjustable comfort control for personalized therapy
• Upright Mode: Increases system pressure to compensate for the upright patient position without losing clinical effectiveness
• Firm Mattress Mode: Fully inflates mattress to aid in placement and maneuvering of patient. Facilitates nursing care during dressing changes and repositioning
• CPR/Emergency Deflate: One-touch function enables rapid deflation in emergencies for immediate access to the patient
• Manual Weight Input: Allows manual entry of patient weight for precise pressure adjustment
• Back-lit Keys: Allow system features to be visible in dim/dark environments
• Digital LCD Display: Easy to read digital display showing system status
• Quiet Operation: Advanced compressor design for patient comfort

Clinical Benefits

• Microclimate Management: Helps manage skin maceration by reducing moisture buildup between patient and mattress, preventing skin breakdown and promoting healing
• Pressure Redistribution: Continuous low pressure redistributes patient's weight over a greater area than standard mattresses
• Improved Moisture Dissipation: True low air loss technology manages micro-climate of the skin
• Versatile Treatment: Designed for treatment and/or prevention of pressure ulcers and other tissue trauma, including burns and other wounds
• Patient Safety: Audible and visual alarms alert caregivers to pressure or power issues
• Power Failure Protection: System automatically resets after power failure with System Lock feature

Product Features

• A "True" low air loss system; lightweight and portable, cost-effective, and reliable
• Helps manage micro-climate of the skin and improve moisture dissipation
• Firm Mattress Mode helps facilitate nursing care during dressing changes and repositioning of the user
• Cover is fluid resistant, water resistant, and vapor permeable
• Durable, high-quality materials designed to withstand frequent use in clinical settings
• Multi-layered, waterproof cover material that is easy to clean and maintain
• Compatible with most hospital beds and can be easily integrated into existing patient care protocols
• Comprehensive warranty and technical support for reliable operation

Specifications

Mattress Specifications

Model Number:	SAMAXSYS
Mattress Type:	Mattress Replacement
Dimensions:	36"W x 84"L x 8"H
Weight Capacity:	400 lbs (181 kg)
Mattress Weight:	28 lbs
Therapeutic Classification:	Group II Therapeutic Surface
Pressure Ulcer Stages:	Stage 1, 2, 3, and 4

Control Unit Specifications

Flow Rate:	1,275 liters per minute (LPM)
Comfort Settings:	10 digital adjustable levels
Voltage:	120V AC 50/60 Hz
Current:	Less than 5 amps
Classification:	Class I, Type BF Equipment
Mode of Operation:	Continuous
Standards:	TUV EN 60601-1, IEC60601-1

Cover and Material Specifications

Flammability:	16 CFR Part 1632 (composite testing)
Latex:	Latex free
Surface Resistivity:	Anti-static
Bacterial Resistance:	Meets AATCC-147-1993

Environmental Conditions

Operating Temperature:	50°F - 90°F (10°C to 32°C)
Operating Humidity:	80% RH Maximum
Operating Altitude:	6,560 Ft. (2,000 Meters)
Storage Temperature:	32°F - 122°F (0°C to 50°C)
Storage Humidity:	80% RH Max.

Clinical Indications

SelectAir low air loss mattress systems are designed for treatment and/or prevention of pressure ulcers and other tissue trauma. Ideal for:

• Pressure Ulcers
• Burns
• Geriatrics
• Rehabilitation
• Spinal Cord Injury
• Arthritis
• Oncology
• Orthopedics
• Skin Flaps/Grafts
• Multiple Sclerosis
• Neurosurgery
• Pain Management
• Cardiovascular
• Plastic Surgery
• Dermatology
• AIDS
• Extended Care
• ALS

Warranty

Warranty - Control Unit & Mattress:	5 years limited
Warranty - Cover:	12 months limited

What's Included

• SelectAir MAX mattress with integrated side bolsters
• High-flow control unit with digital LCD display
• Water resistant, vapor permeable zippered mattress cover
• Mattress pad (placed inside cover)
• Flexible hose with quick-connect fitting
• Power cord and setup instructions
