Duet Alternating Low Air Loss Mattress with Rotation

Customized Lateral Rotation 24 Hours a Day

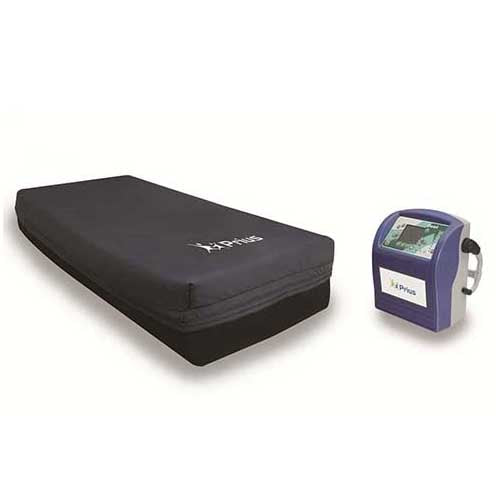

Prius Duet with Low Air Loss, Pulsation, Lateral Rotation, Fowler System. The Duet is an easy to setup system that can be customized for patient comfort while providing the most functional therapy for healing and preventing skin issues.

Prius Duet is available in 36", 42" and 48" widths each with 600 lbs. weight capacity.

Download Owner's Manual: Prius Duet Manual

Full Description

How to Heal or Prevent Pressure Sores

The Duet Mattress System is a 3 in 1 air mattress with Pulsation, Low Air Loss and Lateral Rotation.

The Duet mattress is designed to aid patients who are at risk of developing pressure ulcers and for treatment of existing Stage 1, 2, 3 and 4 pressure ulcers. The Duet should also be considered for acute intervention for pulmonary patients. Pulsation and alternating therapy increase blood circulation by decreasing pressure points.

The Duet Mattress can accommodate patient weights up to 600 lbs.

Eliminate manual repositioning: The Prius Duet is a rotation system and can provide patient rotation 24 hours a day. By slowly, gently and quietly repositioning the user, this mattress facilitates treatment of pressure ulcers while helping to offset the hazards of immobility. This rotation therapy in 40 degrees significantly lowers the risk of infection, pneumonia and other pulmonary complications.

Easy to use: The user-friendly high flow control unit offers 10 comfort levels; adjustable turning cycles and a maximum turn angle adjustment of up to 40 deg.

Maximum Roll Angle: 40 deg.

Cycle Time: Cycle time can be adjusted 3 minutes to 95 minutes.

ALTERNATE Setting: Provides 3 in 1 alternating pressure therapy that can be adjusted from 3 to 20 minutes in 1 minute increments or 20 to 95 minutes in 5 minute increments.

PULSATE setting: Gently raises and lowers the pressure of the entire air mattress every 90 seconds (60 seconds of pulsation) for an alternative to traditional alternating pressure. Simulates a massage to assist in maximizing patient comfort.

Mattress Size: 36"W x 80"L x 10"H also available in 42" and 48" widths.

Customized Lateral Rotation 24 Hours a Day

The Duet Mattress slowly, gently, and quietly rotates the user laterally up to 40 degrees. Provides caregivers the flexibility to select a standard turning program, or to create a pattern fully customized to the patient's condition.

Quick Specifications:

• Weight limit: 600 lbs (700 lbs according to some sources)
• Mattress weight: 39.6 lbs
• Will not lose air in case of Power Outage
• Equipped with 2" convoluted foam base provides additional support during power failure situation

Product Features

Duet Air Mattress for prevention and treatment of skin breakdown in bed-bound patients.

Duet has a unique Alternating mode that is unlike most Alternating Pressure Mattresses. The whole mattress, instead of individual cells, slightly deflates and inflates.

40º Lateral Rotation and Low Air Loss modes.

Advanced Features:

• Lateral Rotation up to 40 degrees
• Low Air Loss therapy with true low air loss technology and high flow rate
• Pulsation therapy (60 seconds simulates massage)
• 3-in-1 Alternation and static modes
• 10 Digital comfort settings
• High airflow multi-function control unit with user-friendly LCD display

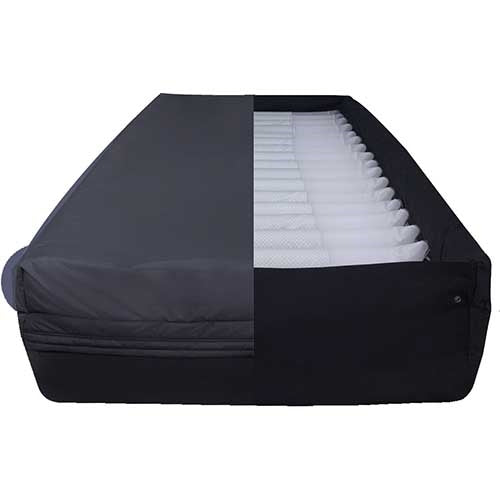

• 18 eight-inch cells with modular construction for simplistic repair and cleaning
• Microprocessor pressure sensing technology to produce low pressure support
• Auto Set Function: Automatically sets optimal pressure based on patient's weight, height and position using BMI (Body Mass Index)
• Fowler Mode: Detects changes in bed frame angle and automatically adjusts pressure to help prevent bottoming out while patient is in sitting position (over 30 degrees)
• Patient Care Mode: Provides quick maximum inflation within seconds to help transfers and nursing procedures
• Sensor Technology: Incorporates automatic sensing technology for bottoming out prevention and pressure adjustment
• Lock Out Function: Avoids tampering with settings (automatically locks after 2 minutes of no operation)
• Audible and visual low pressure alarms
• Bottom Out Alarm: Visual / Audio
• Power Failure Alarm: Visual / Audio
• Sensor Disconnect Alarm
• Vapor permeable, waterproof and fire retardant top cover with highly oversized pliable quilted nylon providing low shear, friction and moisture protection
• Low slip nylon under mattress base cover to reduce shearing and friction between mattress and bed frame
• Integrated glide sheet to base cover for easy transferring
• TPU/Nylon PU cell design provides easy cleaning and minimizes the proliferation of bacteria
• CPR quick release system deflates the system within 20 seconds
• Cable management keeps electrical cables off the floor
• Hanging bracket fits on all types of beds

Specifications

Master Control Unit

Model No:	FC-MOX0027
Model Name:	Duet
Dimensions:	12.2"L x 6.7"W x 13.2"H
Control Unit Weight:	14.3 lbs
Cycle Time:	3 - 95 minutes
Min Operating Pressure:	8 ± 5 mmHg
Max Operating Pressure:	33 ± 5 mmHg
Rated Voltage:	AC 110-120V
Max Current:	5 Amp
Fuse Rating:	T5AH 250V
Rated Frequency:	60 Hz
Classification:	Class I, Type BF Not AP/APG type
Mode of Operation:	Continuous
Standard:	IEC 60601-1, CAN/CSA C22.2 No. 60601-1, IEC 60601-1-2

Mattress Replacement

Model Numbers:	FM-MOX0009 (36") FM-MOX0044 (42") FM-MOX0045 (48")
Dimensions:	36"W x 80"L x 10"H 42"W x 80"L x 10"H 48"W x 80"L x 10"H
Mattress Weight:	39.6 lbs
Number of Cells:	18 cells
Cells Material:	Nylon coated with PU
Cover Material:	Nylon woven fabric w/PU coating finish
Base Material:	Woven Polyester fabric w/PVC backing
Construction:	8 inch air cells with a 2" convoluted foam base
Weight Capacity:	36" width: 350 lbs (recommended maximum safe working load) 42" width: 500 lbs 48" width: 600 lbs
Pulsation:	Simulates Massage (60 seconds)
Warranty:	2 years on mattress, 1 year on cover
Rotate w/Head Raised	No (Lateral Rotation disengaged when head section articulated)
Expected Service Life:	5 years

Environment Specifications

Operating Temperature:	15°C to 35°C (59°F to 95°F)
Storage Temperature:	5°C to 60°C (41°F to 140°F)
Operating Humidity:	30% to 75% non-condensing
Storage Humidity:	30% to 90% non-condensing

Clinical Benefits

• Comprehensive Therapy: Combines Low Air Loss, Pulsation, 3-in-1 Alternation, Static, and 40-degree Rotation therapies simultaneously in one system
• Pulmonary Care: Continuous lateral rotation significantly lowers risk of infection, pneumonia and other pulmonary complications
• Reduced Manual Positioning: Eliminates need for constant manual repositioning by caregivers
• Intelligent Pressure Management: Auto Set and Fowler Mode features automatically optimize pressure based on patient position and body measurements
• Enhanced Safety: Multiple alarm systems (bottom out, power failure, sensor disconnect) ensure patient safety
• Easy Patient Care: Patient Care Mode enables quick transfers and nursing procedures
• Power Failure Protection: 2" convoluted foam base provides support during power outages
