Hoyer Professional Series Hand Pendant

Genuine Hoyer Hand Pendant for Professional Series Power Lifts

The hand pendant is your primary control interface for operating Hoyer power patient lifts, allowing caregivers to precisely control lifting and base adjustment functions with simple button operation. This genuine Joerns Hoyer replacement pendant (part #0Y0075) ensures reliable operation and maintains compatibility with all lift safety systems.

Compatible Hoyer Lift Models

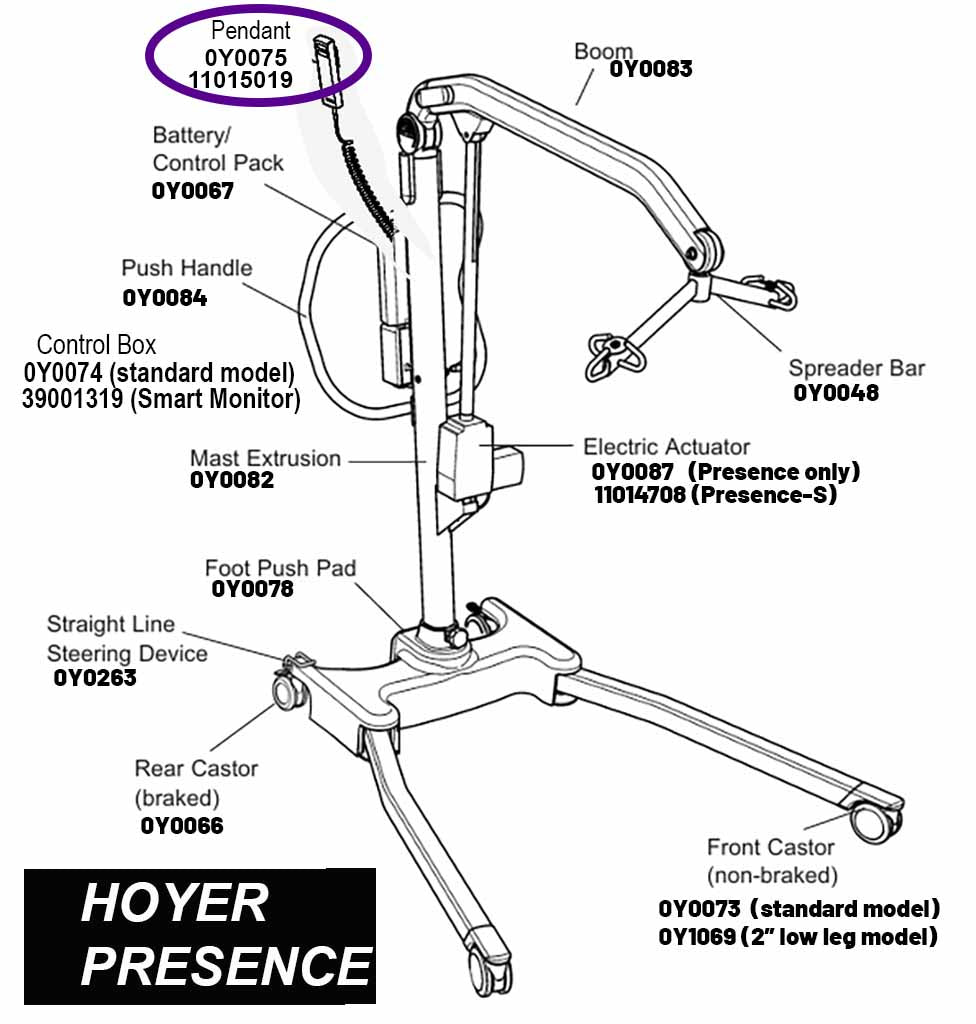

This hand pendant works with the following Hoyer Professional Series lifts equipped with STANDARD control boxes (non-Smart Monitor versions):

• Hoyer Presence - 500 lb capacity power patient lift
• Hoyer Stature - Professional power patient lift
• Hoyer Arise - Professional series power lift
• Hoyer Ascend - Professional series power lift
• Hoyer Elevate - Professional series power lift

Important Compatibility Note: This pendant ior lifts with STANDARD control boxes (part #0Y0074). If your lift has a Smart Monitor control box with LCD display (part #39001319), you need the Smart Monitor hand pendant (part #11015019) instead.

Four Essential Functions

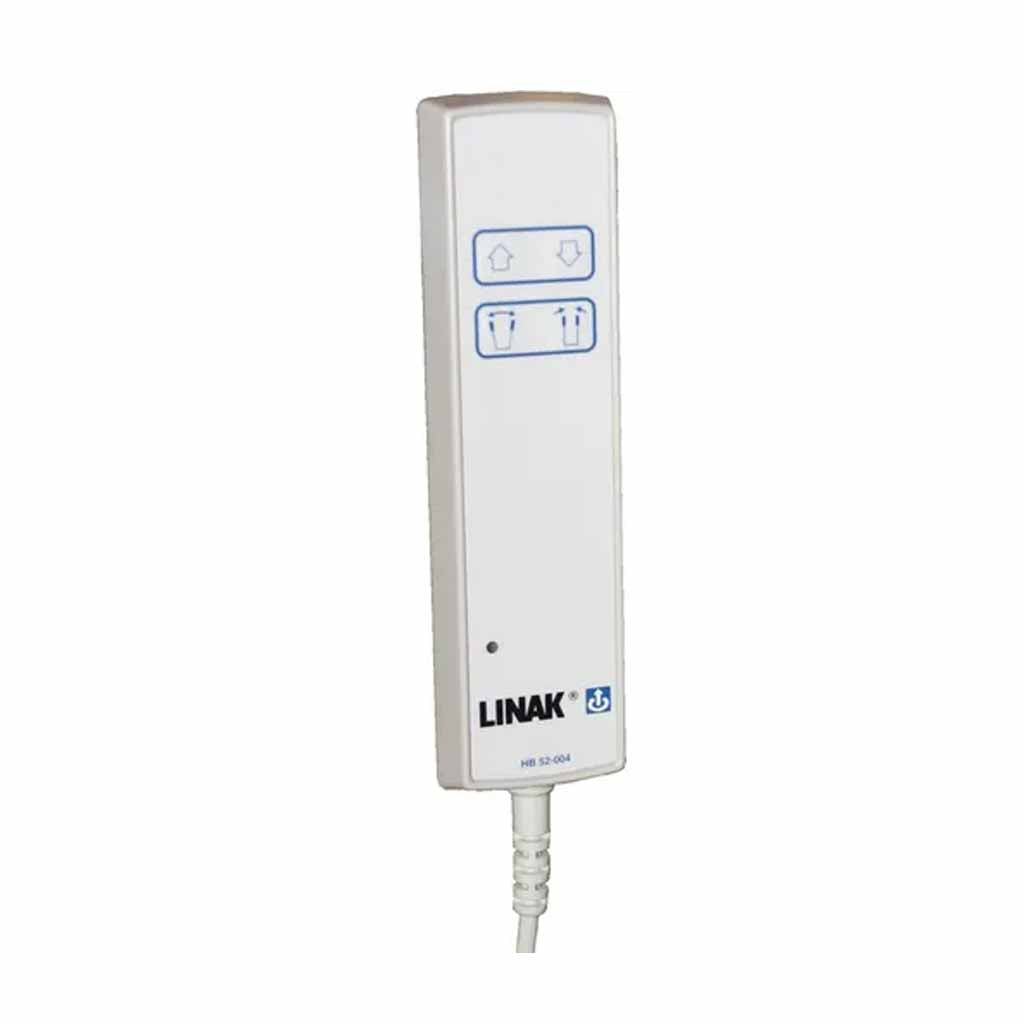

The 0Y0075 hand pendant provides four critical lift control functions through clearly labeled buttons:

Lift Up/Down

Raises and lowers the patient smoothly and safely. Press and hold the UP button to raise the patient from seated or floor level. Press and hold the DOWN button to gently lower the patient to the destination surface. The actuator responds immediately to button commands while maintaining controlled speed for patient comfort and safety.

Base Legs In/Out

Opens and closes the lift's adjustable base legs for positioning around wheelchairs, beds, and furniture. Press IN to narrow the base for maneuvering through doorways or positioning in tight spaces. Press OUT to widen the base for increased stability during transfers. The powered base adjustment eliminates the need for caregivers to bend and manually adjust leg positions.

Ergonomic Design Features

Lightweight Construction

The pendant weighs just ounces, reducing hand and wrist fatigue during frequent transfers throughout the day. Caregivers can hold the pendant comfortably in one hand while maintaining contact with the patient using the other hand.

Large, Tactile Buttons

Oversized buttons are easy to locate and press, even when wearing gloves or when attention is focused on the patient rather than the control. Raised button design provides tactile feedback confirming button engagement. Clear labeling with directional arrows prevents operation errors.

Durable Cable

Heavy-duty coiled cable stretches to allow caregiver movement around the lift while maintaining connection to the control box. The coiled design prevents cable tangles and extends cable lifespan compared to straight cords. Standard length accommodates normal working range around the lift.

8-Pin DIN Connection

Industry-standard connector ensures secure attachment to the control box. The keyed design prevents incorrect connection orientation, and the locking collar maintains connection during operation preventing accidental disconnection during transfers.

Integrated Pendant Holders

Hoyer Professional Series lifts include convenient pendant holders mounted on the lift frame. These holders keep the pendant accessible and secure when not in use, preventing the pendant from dragging on the floor, getting caught on obstacles, or being misplaced between transfers.

Signs Your Hand Pendant Needs Replacement

• Buttons not responding or requiring excessive force to activate
• Intermittent function - lift sometimes responds, sometimes doesn't
• Physical damage to pendant housing or buttons
• Frayed, cracked, or damaged cable
• Worn button labels making function identification difficult
• Connector pins bent or damaged
• Cable no longer retracts properly (if coiled design)
• Sticky buttons that don't return to neutral position

Why Genuine Hoyer Hand Pendants Matter

Precise Electrical Specifications

Genuine Joerns pendants use exact electrical specifications matching your lift's control system. Generic replacements may send incorrect voltage or signal timing, causing erratic operation, reduced actuator lifespan, or safety system malfunctions.

Quality Switch Mechanisms

OEM pendants use high-quality momentary switches designed for hundreds of thousands of activation cycles. These switches provide consistent response throughout their lifespan and fail safely (preventing unintended activation) when they do wear out.

Proper Safety Integration

Genuine pendants integrate properly with lift safety features including emergency stop functions, overload protection, and low battery warnings. Third-party pendants may bypass or interfere with these critical safety systems.

Warranty Protection

Using non-OEM pendants can void your lift's warranty and may cause damage to the control box or actuator not covered under warranty. Genuine parts protect your investment and maintain full warranty coverage.

Installation and Setup

Hand pendant replacement requires no tools and takes less than one minute:

1. Ensure lift is powered off or battery disconnected for safety
2. Locate pendant connection point on control box
3. If replacing existing pendant, grasp connector and pull straight out
4. Align pins on new pendant connector with socket on control box
5. Push connector firmly into socket until fully seated
6. If connector has locking collar, rotate to lock in place
7. Reconnect battery or power on lift
8. Test all functions before use with patient

No programming or calibration is required. The pendant should function immediately upon connection.

Operating Tips for Caregivers

Maintain Line of Sight

Always keep the patient in clear view while operating the pendant. Position yourself where you can see both the patient's face and body positioning throughout the transfer.

Use Smooth Motions

Avoid rapid button presses or sudden starts and stops. Press and hold buttons for smooth, continuous motion. Release buttons gradually as you approach the desired position rather than stopping abruptly.

Communicate Throughout

Explain to the patient what you're doing as you operate the lift. Announce "I'm raising you now" or "We're lowering to the chair" so patients know what to expect and can brace appropriately.

Keep Pendant Dry

While pendants are designed for healthcare environments, avoid exposing them to liquids. Moisture inside the pendant can cause button malfunction or short circuits. Wipe down with damp cloth if contaminated, don't submerge or spray directly.

Store Properly

When not in use, secure the pendant in the integrated holder on the lift frame. This prevents damage, keeps the pendant readily accessible, and maintains a professional appearance.

Troubleshooting Common Issues

Lift Not Responding to Pendant

Check: Battery charged and connected, pendant connector fully seated, emergency stop not engaged, control box powered on. If all checks pass but lift still unresponsive, issue may be control box rather than pendant.

Some Buttons Work, Others Don't

Likely Cause: Failed switch mechanism inside pendant. This indicates pendant replacement needed. Individual switches cannot be replaced - the entire pendant assembly must be replaced.

Intermittent Operation

Check: Pendant connector for loose fit, cable for damage near connector or pendant body, control box connection point for bent pins or corrosion. Intermittent issues often indicate failing cable or connector requiring pendant replacement.

Buttons Require Hard Pressing

Likely Cause: Dirt or contamination inside button mechanism, or worn switch contacts. Cleaning external button surface may help temporarily, but hard-to-press buttons usually indicate end of pendant lifespan.

What's Included

• One (1) Hoyer Hand Pendant
• Coiled cable with 8-pin DIN connector
• Factory sealed in original Joerns packaging

Note: Control box, battery, and lift sold separately. This is a replacement pendant only.

Care and Maintenance

Daily Care

• Wipe pendant with damp cloth and mild disinfectant between uses
• Inspect cable for damage, fraying, or exposed wires
• Check connector for bent pins or debris
• Verify all buttons return to neutral position after pressing
• Store in pendant holder when not in use

Monthly Inspection

• Test each button function with lift empty (no patient)
• Inspect cable at stress points (near pendant body and connector)
• Check button labels for wear or illegibility
• Verify connector locking mechanism if equipped
• Clean button crevices with soft brush if needed

Expected Lifespan

With proper care, hand pendants typically last 3-5 years in home care settings with moderate use. Facility environments with heavy daily use may require replacement every 2-3 years. Factors affecting lifespan include usage frequency, cleaning chemical exposure, and physical handling care.

Difference Between Standard and Smart Monitor Pendants

It's critical to order the correct pendant for your control box type:

Standard Pendant (0Y0075)

• For use with standard control boxes (part #0Y0074)
• Four functions: Lift Up/Down, Base In/Out
• No data display capability
• 8-pin DIN connector
• Works with Presence, Stature, Arise, Ascend, Elevate (standard versions)

Smart Monitor Pendant (39001388)

• For use with Smart Monitor control boxes (part #39001319)
• Four lift functions PLUS data access buttons
• Allows viewing lift utilization data on control box LCD
• Different connector configuration
• Works with Presence, Stature (Smart Monitor versions only)

Not Sure Which You Have? Look at your control box. If it has an LCD display screen showing lift data, you have Smart Monitor and need pendant #39001388. If no display screen, you have standard control box and need pendant #0Y0075 (this product).

Warranty

Genuine Hoyer hand pendants include a 2-year manufacturer warranty covering defects in materials and workmanship. Warranty does not cover damage from misuse, liquid exposure, or physical damage from dropping or crushing.

Shipping and Returns

Shipping: FREE - Ships within 1-2 business days via UPS Ground

Returns: 30-day return policy. Product must be unopened in original packaging. Opened pendants cannot be returned except for manufacturing defects covered under warranty.

Frequently Asked Questions

Q: Will this pendant work with my older Hoyer Classic lift?

A: No. This pendant is specifically for Professional Series lifts (Presence, Stature, Arise, Ascend, Elevate). Classic models like HPL402, HPL400, and C-HLA use different pendants with different connectors and button configurations.

Q: Can I use this pendant with a Smart Monitor control box?

A: No. Smart Monitor control boxes require the Smart Monitor pendant (part #39001388). While this pendant may physically connect, it will not function properly and cannot access Smart Monitor features.

Q: The cable on my pendant is damaged but buttons work fine. Can I repair it?

A: No. Pendants are sealed units not designed for field repair. Cable damage requires complete pendant replacement. Using a pendant with damaged cable creates shock hazards and unreliable operation.

Q: How do I know if the pendant or control box has failed?

A: If you have access to a known-good pendant, swap pendants to test. If the lift works with the spare pendant, your original pendant has failed. If lift still doesn't work with spare pendant, the issue is likely the control box, battery, or actuator.

Q: Can I purchase a spare pendant to keep on hand?

A: Yes, and this is recommended for facilities where lift downtime is unacceptable. Having a spare pendant allows immediate replacement if the primary pendant fails, eliminating the wait for shipping.

Related Parts You May Need

• Standard Control Box (0Y0074): If pendant replacement doesn't resolve issues, control box may need replacement
• Battery Pack (0Y0067): If lift not responding, check battery condition
• Battery Charger (0Y0053): Ensure proper battery charging for reliable lift operation
• Smart Monitor Pendant (39001388): If you want to upgrade to Smart Monitor functionality

Need Help?

Not sure if this is the correct pendant for your lift? Our parts specialists can verify compatibility based on your lift model and serial number. We can also provide diagnostic guidance if you're troubleshooting lift operation issues.

Call 800-998-4703 Monday through Friday, 7am-5pm EST, or email us with your lift model and serial number for expert assistance.
