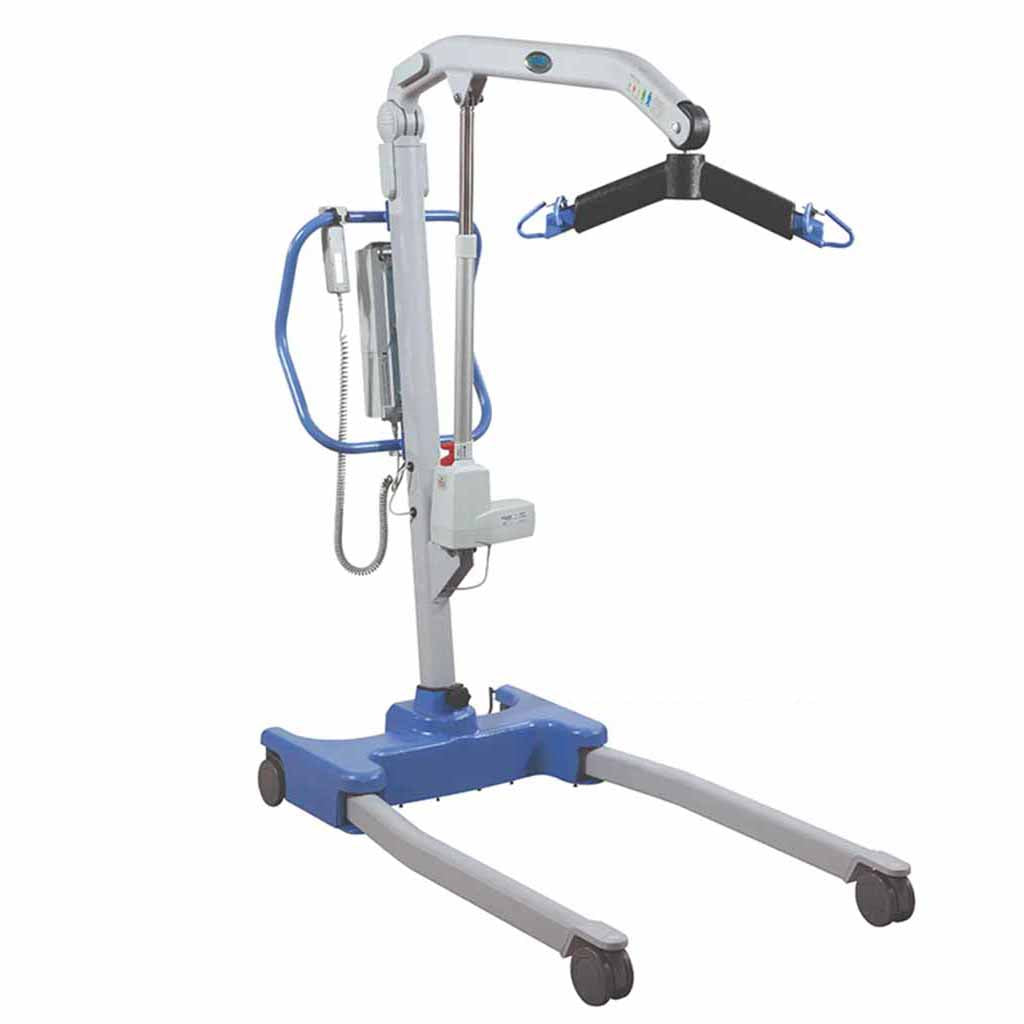

Hoyer Presence Lift

Hoyer Presence Professional Power Patient Lift

The Hoyer Presence is engineered to handle virtually any patient-handling task in home care, long-term care, rehabilitation, and acute care environments. With Smart Monitor technology, a powered base, swan-neck legs for floor transfers, and an extensive 16.9"–75.2" lifting range, the Presence is the most capable lift in the Hoyer lineup — and the only lift in its class with integrated operational tracking standard.

Smart Monitor Technology

The Presence is the only patient lift in its class with an integrated Smart Monitor — a control box with LCD display that goes beyond basic lift operation:

• Lift activity tracking: Records actual number of lifts performed for usage and compliance data
• Service reminders: Automatically alerts users when recommended service intervals are due
• Battery status display: Shows remaining battery power at a glance
• Large red emergency button: Immediately accessible during transfers

Powered Base — Foot Pedal Leg Adjustment

Legs open and close electronically via foot pedal — no bending, twisting, or manual force required. The caregiver stays upright throughout positioning. The U-shaped base widens to position around chairs and wheelchairs, narrows to pass through doorways.

Swan Neck Leg Design

The swan-neck leg geometry curves inward and under furniture — allowing the lift to get closer to the patient than standard straight-leg lifts. Critical for floor lifts and transfers from low surfaces.

Optional Integrated Scale

Available with an optional NAWI Class III-rated digital patient scale. Weighs the patient during the transfer — no additional step or equipment required. Full lifting range maintained with scale installed. Two-sided digital display visible to both caregiver and patient.

Optional Low Leg Kit

Standard leg height is 4.7". The optional Low Leg Kit reduces leg height to 2.4" — allowing the base to slide under low-profile beds and furniture that standard legs cannot clear.

Interchangeable Cradle Options

• Standard 6-point cradle: Included — works with full range of Hoyer 6-point slings
• 4-point cradle: Optional
• Powered adaptive positioning cradle: Optional — 360-degree powered rotation
• Stretcher cradle: Optional — for horizontal transfers

What's Included

• Hoyer Presence powered patient lift
• Smart Monitor control unit with LCD display
• 6-point spreader bar cradle (standard)
• Ergonomic push pad
• Battery and charger

Slings not included — compatible with full Hoyer Professional sling line.

Download Owner's Manual (PDF)  |  Hoyer Sling Selection Guide (PDF)

Smart Monitor & Safety

• Integrated Smart Monitor — LCD display, lift activity tracking, service reminders, battery status
• Large red emergency button — immediately accessible during transfers
• Cable-free design — no external cables, eliminates trip hazards
• EN ISO 10535 certified

Lifting & Transfer

• 500 lb (227 kg) safe working load
• Spreader bar minimum height: 16.9" — low enough for floor transfers
• Spreader bar maximum height: 75.2" — reaches high hospital beds and elevated surfaces
• Height at maximum reach: 51.5"
• Compatible with full Hoyer Professional sling line
• Interchangeable cradle options — 6-point (standard), 4-point, powered adaptive, stretcher

Base & Maneuverability

• Powered base with foot-pedal leg adjustment — caregiver stays upright throughout positioning
• Swan-neck leg design — curves under furniture for floor and low-surface transfers
• Legs open inside dimension: 40.1"
• Legs closed outside dimension: 26.4" — fits through standard doorways
• Standard leg height: 4.7" (optional low leg kit: 2.4")
• Ergonomic push pad — reduces force required to move loaded lift
• Lightweight engineered aluminum frame — approx. 88 lb (40 kg)

Ideal For

• Professional care environments requiring high-capacity, intelligent power lift
• Patients up to 500 lbs requiring frequent powered transfers
• Facilities needing lift activity tracking and service compliance documentation
• Floor-to-surface and surface-to-surface transfers
• Environments with low-clearance beds requiring the optional low leg kit
• Patients requiring weight monitoring during transfers — select scale option

Model	Hoyer Presence (HOY-PRESENCE-S)
Safe Working Load	500 lb (227 kg)
Lift Weight	88 lb (40 kg)
Spreader Bar Min Height	16.9" (430 mm)
Spreader Bar Max Height	75.2" (1,910 mm)
Height at Max Reach	51.5" (1,310 mm)
Max Overall Height	81.3" (2,065 mm)
Min Overall Height	57.5" (1,460 mm)
Max Overall Length	57.5" (1,460 mm)
Min Overall Length	55.1" (1,400 mm)
Legs Open Inside	40.1"
Legs Closed Outside	26.4"
Standard Leg Height	4.7" (optional low leg kit: 2.4")
Frame	Lightweight engineered aluminum
Base	Powered — foot-pedal leg adjustment
Standard Cradle	6-point spreader bar
Optional Scale	NAWI Class III digital patient scale
Certification	EN ISO 10535
Manufacturer	Joerns Healthcare (Hoyer)

One Year Limited Warranty:
This Hoyer brand lifter is warranted to be free of defects in materials and workmanship for one (1) year after purchase by the original consumer/ owner.
