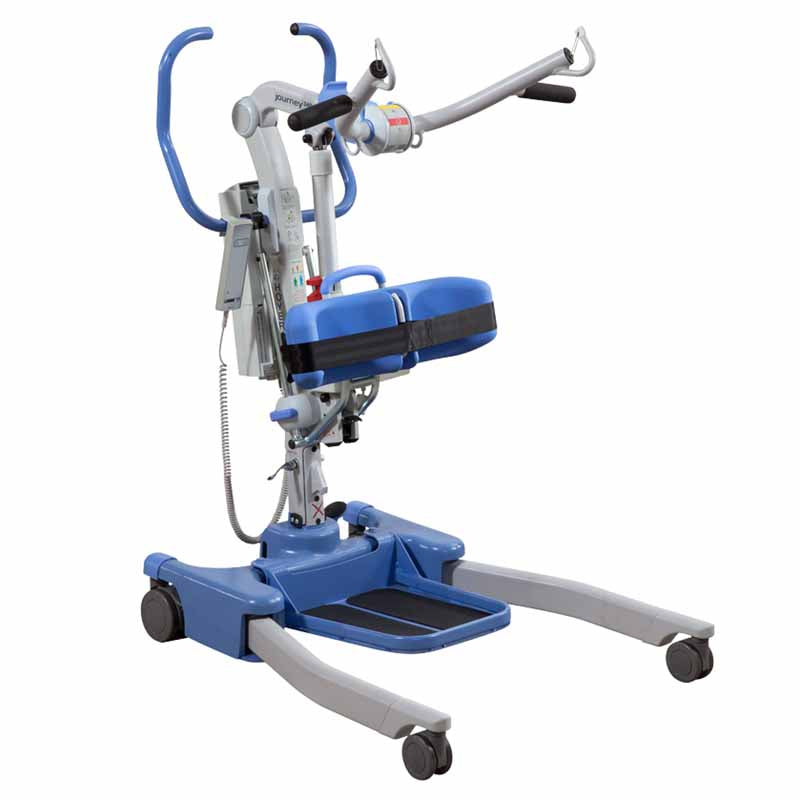

Hoyer Journey Stand Aid

Safe & Reliable Patient Transfers

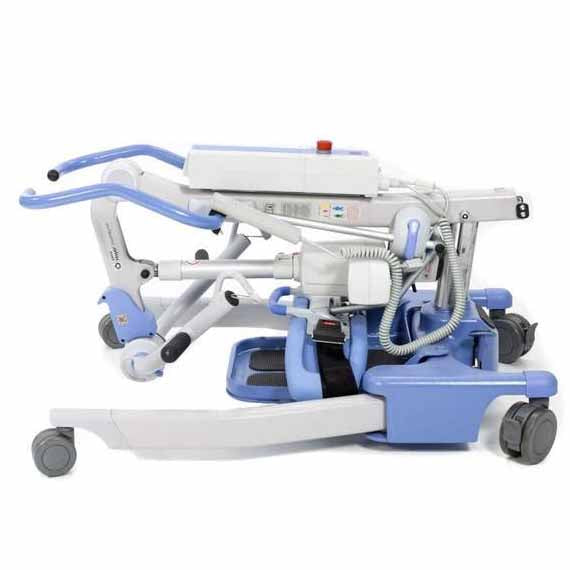

Portable Stand-Assist Lift Folds for storage or transport.

The Hoyer Journey Sit-to-Stand Lift is the true workhorse of small portable Hoyer patient lifts and unique in its class. It features cow-horn handles, the first of its kind, which enable it to adapt to a range of patient sizes.

The Hoyer Journey stand-up lift is the only folding stand aid on the market, accommodating easy storage and transport. Battery-operated, the Hoyer Journey standing lift comes complete with two batteries and a wall-mounted charger. This allows for one battery to always be charged and ready to go.

Compact, nimble and easily maneuverable, this Hoyer Journey patient stand aid has adjustable legs in its sturdy base for easy access around furniture and fixtures. It's a great unit for patient transport!

The Journey lift, usually just takes one assistant, not two. It is safer and easier than a traditional type electric lift.

Includes Hoyer's Smart Monitor: The Hoyer Smart Monitor is a control system that stores useful information about the Lift and can be recalled at any time.

The Smart Monitor information includes:

• Number of patient lift cycles
• Total work done by actuator
• Number of attempted Lifts above the safe working load

• Quick and safe
• Includes knee-strap to secure patient
• Nimble, compact design makes small space maneuverability easy
• Extensive range of motion to accommodate many resident heights and capabilities
• Active lifting motion encourages user participation
• Removable foot tray allows patient to stand and take small steps while being held up by the Lift
• Stand-up lifting is less stressful for users
• Natural standing motion with arc-lifting design
• Extra-long padded knee supports adapt to patients of varying heights
• Low pivot point
• Adjustable U-base spreads around chairs or commode for best access
• Includes 2 rechargeable battery packs and wall mounted charger

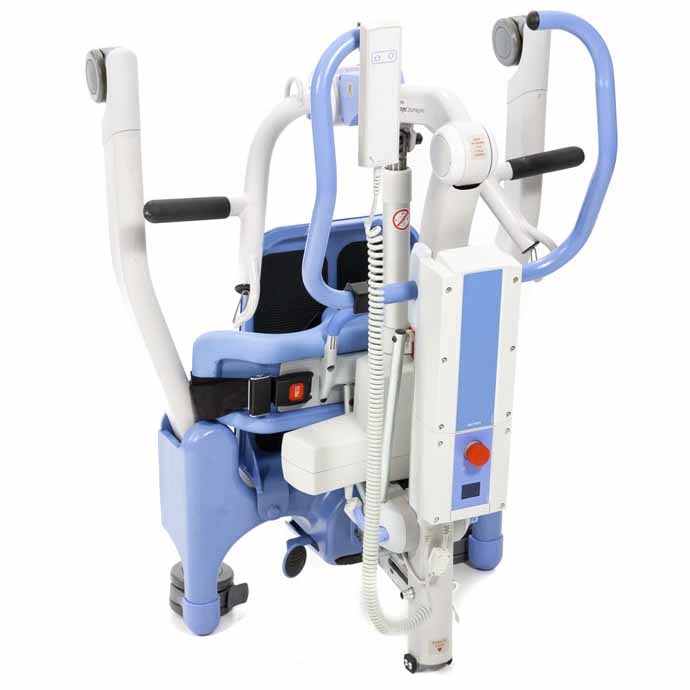

Dimensions when Folded: 20.5"W x 39"L x 20.5"H
Safe Working Load 341-lbs
Maximum Overall Length 39.4"
Minimum Overall Length 36.8"
Maximum Overall Height 63.0"
Minimum Overall Height 44.5"
Maximum Height to Attachment Point 60.2"
Minimum Height to Attachment Point 28.4"
Turning Radius 45.1"
Legs Open - External Width 38.2"
Legs Open - Internal Width 34.5"
Legs Closed - External Width 27.0"
Legs Closed - Internal Width 22.2"
Widest Point (between support handles) 18.8"
Overall Height of Legs 4.3"
Ground Clearance 1.2"
Front Twin Casters 3.0"
Rear Braked Casters 4.0"

Weights:
Mast, Base & Boom Assembly 82.4 lbs
Power Pack 6.2 lbs
Total 88.6 lbs
Base Assembly (not incl battery) 30.2 lbs
Mast & Boom (not incl battery) 42.3 lbs
Foot Tray 9.9 lbs

Electrical Specifications:
Battery: 24vDC rechargeable sealed lead acid type
Battery capacity: 3.2A Ampere hours
Charger rated input: 100-240V AC 24 VDC 50/60Hz
Charger rated output: 29.5 VDC, Max. 19 W

2 Year Warranty on all electrical components, 5 years on structural components.
