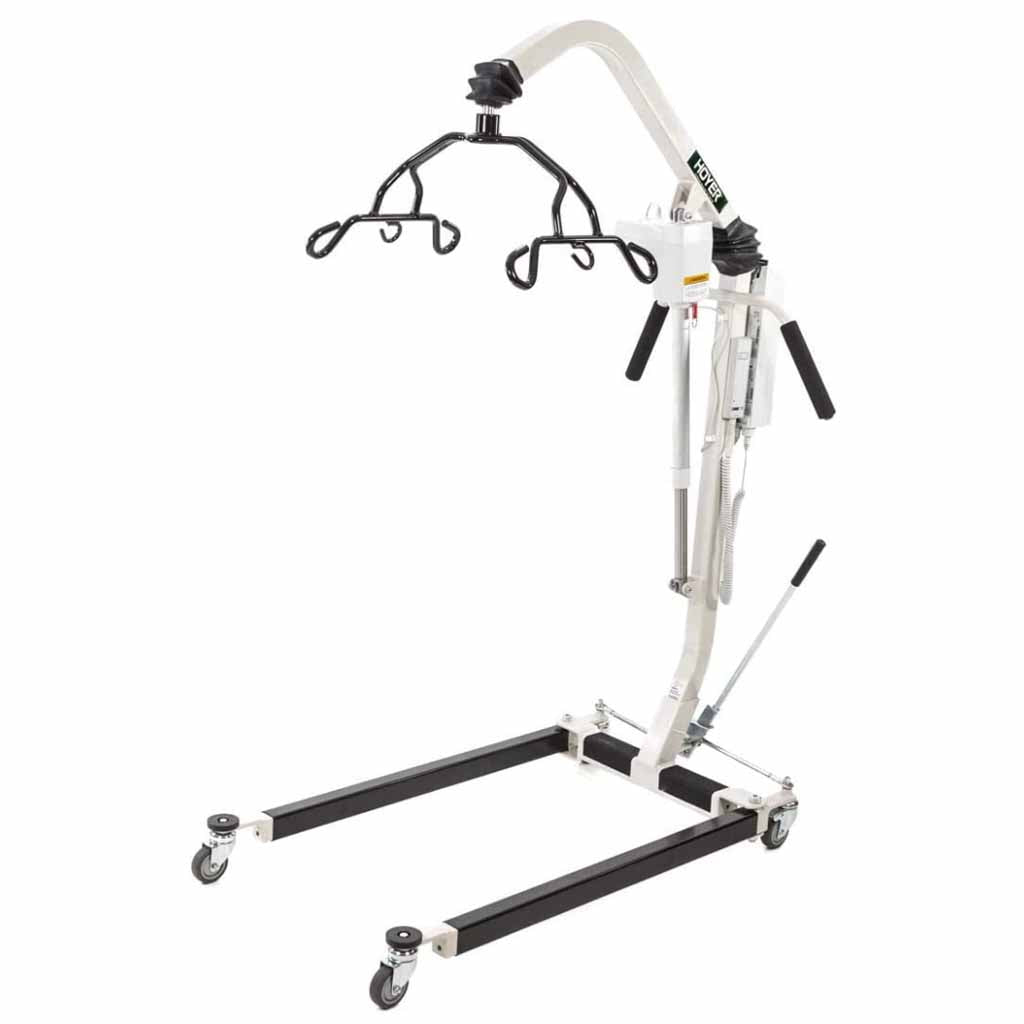

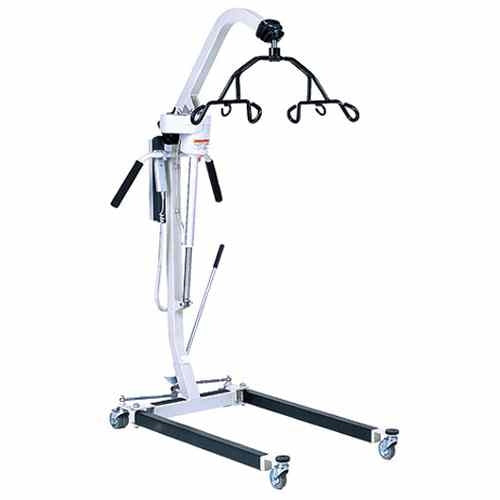

Hoyer HPL402 Power Patient Lift

Hoyer HPL402 Deluxe Power Patient Lift

The HPL402 is Hoyer's most popular power patient lift — and for good reason. Simple to operate, reliable in daily use, and engineered for both home care and facility environments. The adjustable U-base opens to navigate around chairs, toilets, and furniture, then closes for compact storage. The reverse-mounted actuator keeps the mechanical components clear of the patient's legs during transfers for added comfort and safety.

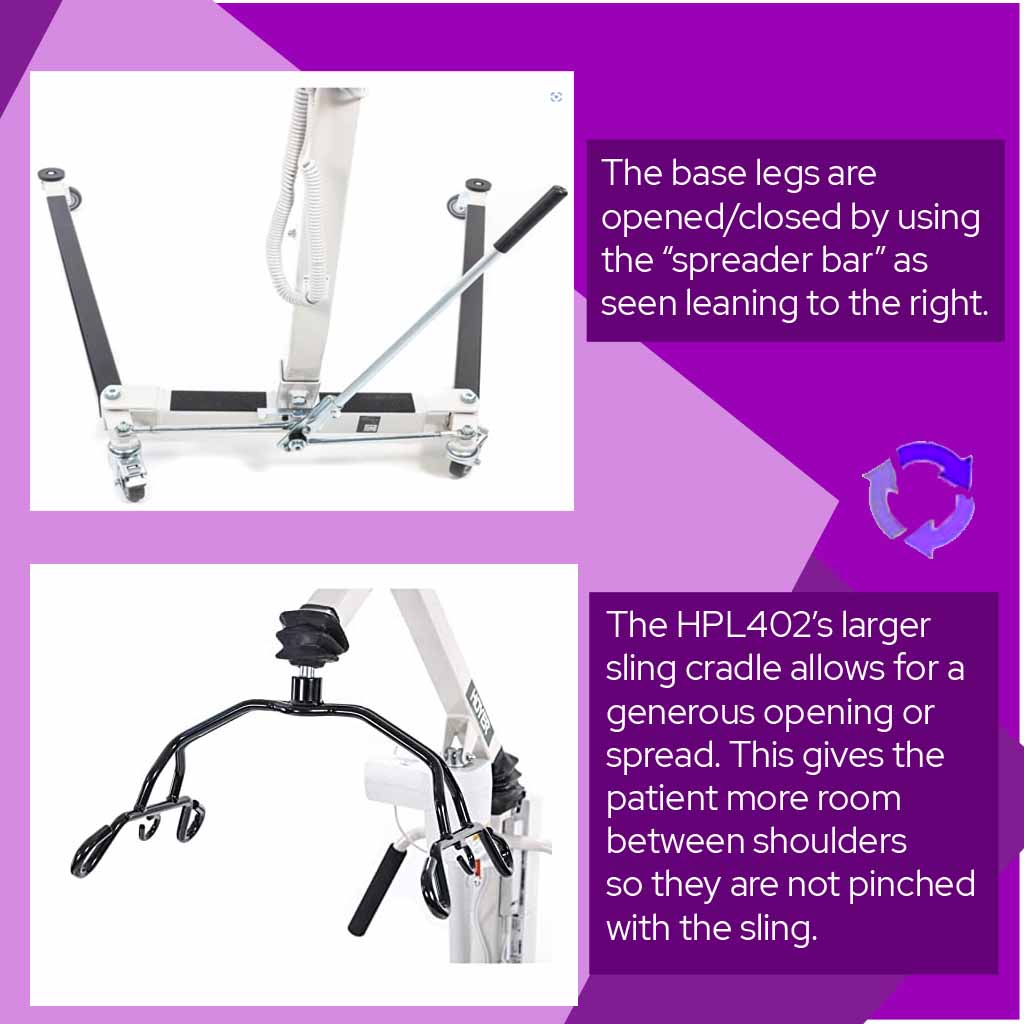

Adjustable U-Base

The U-base design is ideal for seating and toileting transfers — the open U-shape allows the lift to straddle a toilet or wheelchair without obstruction. The base adjusts from approximately 24" (closed) to 39" (open) to maneuver around furniture and tight spaces. Base adjustment is hand-operated.

Emergency Manual Down-Release

In the event of battery failure or power issue, the manual down-release lever allows caregivers to safely lower the patient without electric power — an important safety feature for daily reliability.

Sling Compatibility

The HPL402 is compatible with both 4-point and 6-point Hoyer slings — the most widely available patient lift sling standard. Slings are sold separately.

Delivery Information

Ships in multiple cartons, light assembly required. Base and mast/boom are pre-assembled. Someone must be capable of placing the mast/boom section into the base assembly.

What's Included

• Hoyer HPL402 Deluxe Power Patient Lift
• Hand control with actuator
• Battery pack and charger
• User manual

Slings and accessories sold separately.

HPL402 Owner/User Manual

Lifting & Transfer

• 400 lb (181 kg) weight capacity
• Lift range: approx. 29" to 76" (73.7 cm – 193 cm)
• Compatible with 4-point and 6-point Hoyer slings
• Covers bed-to-chair, chair-to-bed, floor lifts, and seated transfers

Base & Maneuverability

• Adjustable U-base — ideal for seating and toileting transfers
• Base width closed: approx. 24" (61 cm)
• Base width open: approx. 39" (99 cm)
• Base clearance: approx. 5" (12.7 cm) — slides under most beds and low furniture
• Reverse-mounted actuator — keeps mechanics clear of patient's legs during transfers
• Protective leg guards — protect patient and furniture
• Caster bumpers — protect walls and furniture during maneuvering
• Ergonomic handle grips — reduce caregiver back strain

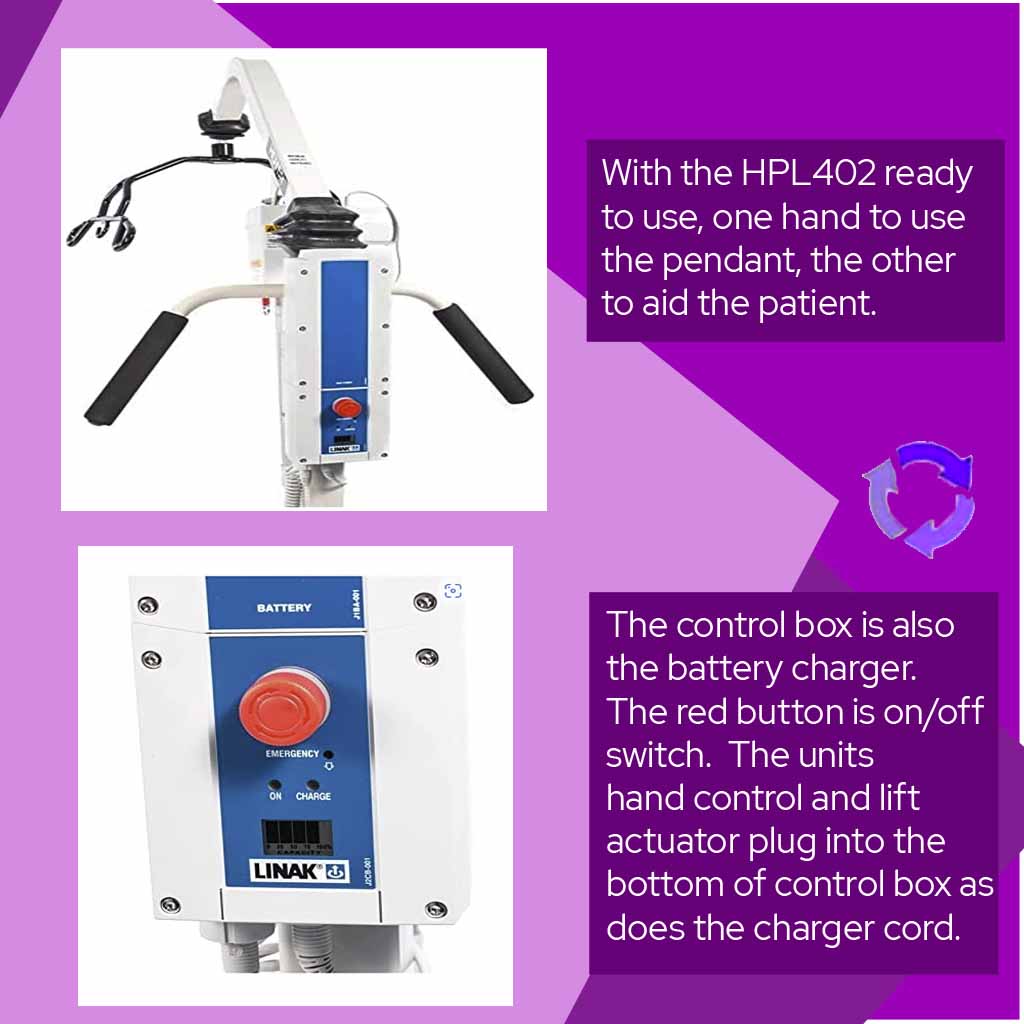

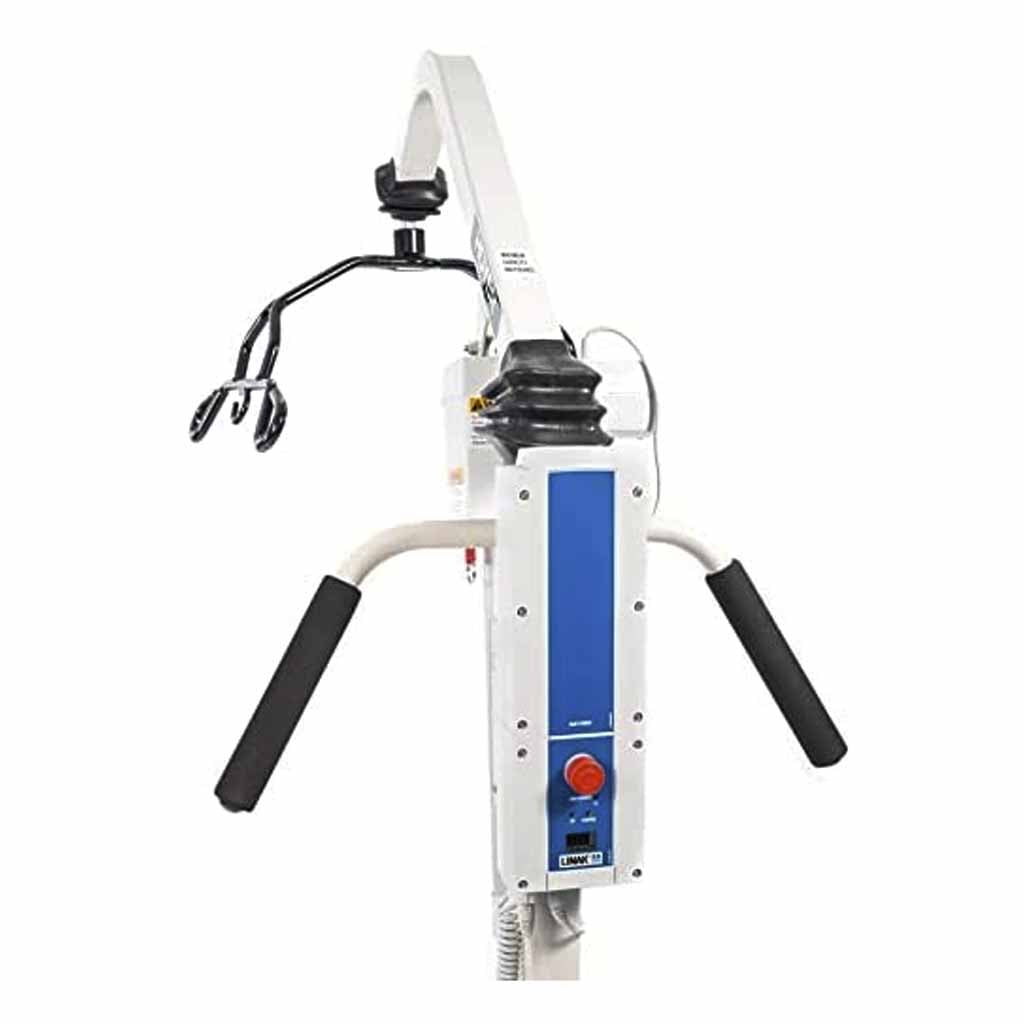

Power & Safety

• Electric actuator with hand control — smooth, controlled lifting
• Manual emergency down-release lever — safely lowers patient without power
• Battery powered with included charger

Ideal For

• Patients up to 400 lbs requiring full-body powered transfers
• Bed to chair, chair to toilet, floor lifts, and bathing transfers
• Home care, assisted living, and long-term care facilities
• Caregivers needing Hoyer's most reliable everyday workhorse lift

One Year Limited Warranty:
This Hoyer brand lifter is warranted to be free of defects in materials and workmanship for one (1) year after purchase by the original consumer/ owner.
