Brand: Hoyer
Advance-E Portable Patient Lift
Get the most efficient Patient Lift

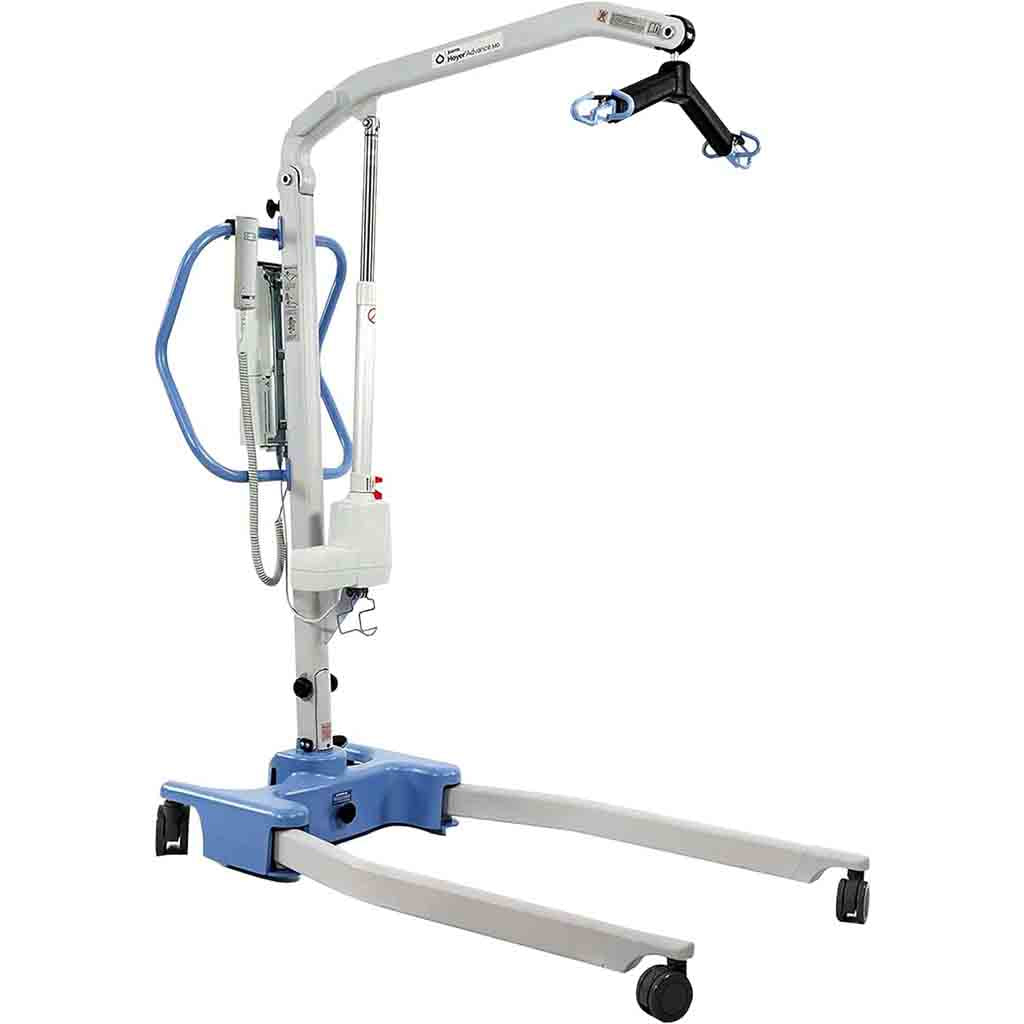

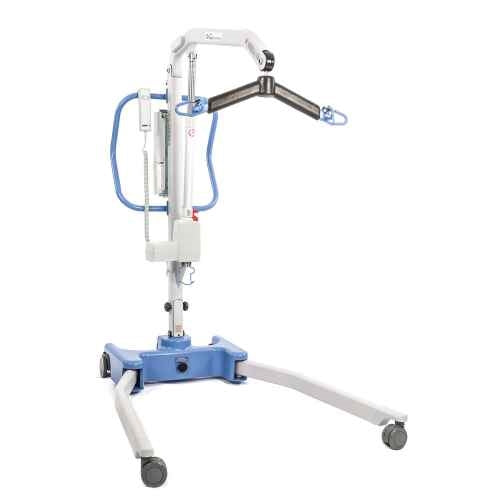

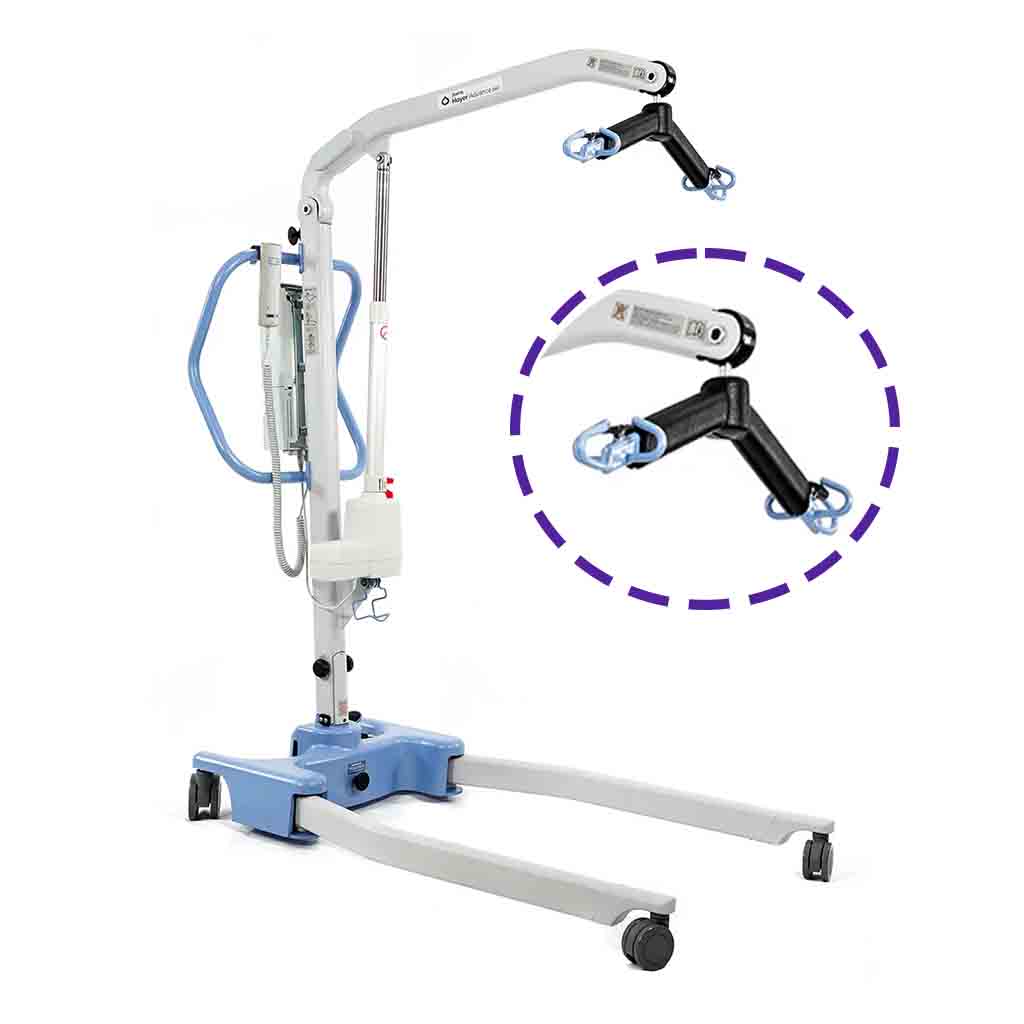

The Hoyer Advance-E Power Patient Lift is lightweight with a compact design that makes it easy to take anywhere. The Advance-E is made of all aluminum construction and can be used on a variety of surfaces. When you're ready to travel, the Advance-E folds and can be separated into two manageable pieces without tools and is easy to transport and store. This patient lift also rolls on its own wheels when folded. Made in the USA!
Download:
Hoyer Advance-E Owner's Manual
Parts:
Find Advance Lift Replacement Parts: Advance Parts
Sale price
Shipping: Usually Ships in 1-3 Business Days.
Returns: 30 Day Return Policy.
Couldn't load pickup availability
Full Description
Full Description
Folding Portable Electric Patient Lift
Battery Power.Made by Hoyer
A powered patient lift allows the caregiver to operate the lift with one hand, freeing-up the other hand to steady the person in the sling and make small adjustments while lifting and lowering.
Hoyer's Folding/Travel Patient Lift

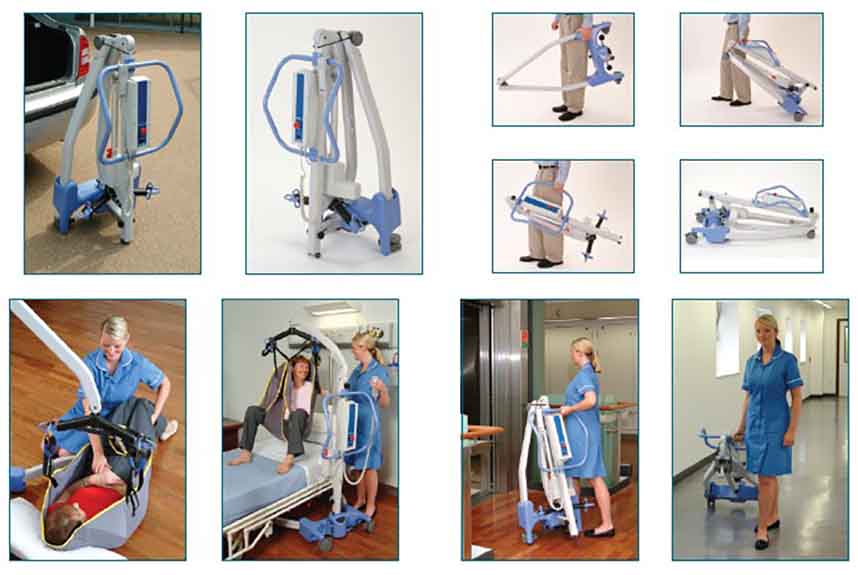

The Hoyer Advance-E Patient Lift not only folds but separates into two easy to manage pieces for transporting in an automobile or van. The Lift is constructed with a lightweight aluminum frame, it is a compact and versatile portable lift, no tools folding design and ability to lift from the floor makes it one of the most popular patient lifts.
The Advance Lift uses the latest Hoyer design and manufacturing technologies to ensure the Advance-E is the most functional, safest, and reliable patient lift in it's class today.
Ideal for Home Care
Don't be mislead by its lightweight design, with Hoyer's actuator and battery technology the Professional Series Lift has a full 340 lbs weight lifting capacity and is ideal for home care.
Components designed with the caregiver in mind:
- Foot-pedal operated base leg opening/closing, eliminating the long lever operated base found on competitor lifts
- Oversized push-handles improve maneuverability, especially in carpeted areas
- Battery charge indicator displays remaining powere level
- Low-Battery visual and audible alarm
- On-board charger means one less component to keep track of
Product Features
Product Features
- Requires only 4.7" underbed clearance
- Oversized handle for increased control
- Push footpad reduces the force needed to initiate movement
- Compact design
- Swan neck leg design accommodates large furniture
- Triangular folded design allows the lift to securely stand unaided
- No tools required to fold
- All aluminum construction
- Foot operated leg spreading mechanism requires no bending to operate
Specifications
Specifications
| Product Weight: |
Mast, Base, & Boom Assembly 64 lbs.
Power Pack 5 lbs. Mast & Boom Assembly (not incl. battery) 31lbs. Base (not incl. battery) 33 lbs. Total (w/battery) 69 lbs |
| Product Length/Depth: |
maximum 4' 3"
minimum 4' 1" |
| Product Height: |
maximum 6'
minimum 4' 5" |
| Spreader Bar Minimum height: | 15.5" allows for lifting from floor |
| Spreader Bar Maximum height: | 66.5" |
| Ship Method(s): | Ground |
| Product Weight Capacity: | 341 lbs. |
| Shipping Weight: | Hydraulic Unit: 86 lbs./Power Unit: 92 lbs. |
| Folded Dimensions |
Height 18.5"
Depth 49.2" Width 21.7" |
| Batteries (power only) | 2 x 12 volt rechargeable sealed lead acid type |
| Battery Capacity (power only) | 3.2 ampere hours |
| Charger Rated Input (power only) | 100/240Vac 50/60Hz |
| Charger Rated Output (power only) | 29.5 VDC, Max 19W |
| Electrical Shock Protection - (power only) |
Charger - Class II
Lift - Internal Power Source |
| Degree of Shock Protection - (power only) |
Charger - Type B
Lift - Type B |
| Spreader Bar Dimensions |
Max. Height 5' 4.5"
Min Usable Height 1' 3" Height @ Max Reach 3' 9" Reach @ Max Height 2' 4" Reach @ Min Height 1' 7" Max. Reach 2' 9" Turning Radius 3' 5" |
| Leg Dimensions |
Open External Width 42.5"
Open Internal Width 39.5" Closed External Width 26.4" Closed Internal Width 22.4" Overall Height of Legs 4.5" |
| Front Twin Casters | 3.3" |
| Rear Braked Casters | 4" |
| Clearance under bed (leg height) | 4.7" |
